Do-it-yourself rowing machine
Tools and MaterialsList of Materials:
- 2 bolt-hooks;
- 2 screws-hooks;
- 10 screws-rings;
- 4 spring washers of M12 size;
- 8 washers M12:
- 8 M12 hex nuts;
- M12 fixing pins
- A handful of screws;
- 1 carbine;
- 2 cable clamps;
- 10 small wheels 3 cm in diameter;
- 2 small wheels with a diameter of 4 cm;
- 4x4 wooden beams with a total length of 10 m;
- Wooden A pole with a diameter of 2.5 cm and 60 cm in length;
- Wooden board 88 cm long, 30 cm wide and thick oh 2.7 cm;
- Board made of MDF with dimensions 99x33x1.1 cm;
- Two long aluminum strips (140 cm long, 4 cm wide and 3 mm thick) ;
- Elastic belts;
- 4 pulleys;
- 2 bearings with an outer diameter of 32 mm and an inner diameter of 12 mm;
- Rope 2 meters long and 10 mm in diameter.
- Glue for wood;
- Wax for wood;
- Wood putty;
- File on wood;
- Drills for drill diameters of 6, 12,15 and 32 mm.
Build a frame
Finally, fill the holes for the screws with wood putty and sandpaper them. The frame is ready! Hooray!
Making a wooden pulley
Moving seatTo begin with, we cut off a plank of 30 by 30 centimeters. After that, we make another 2 wooden panels 30 cm long and 8 cm wide. The first fragment will serve as a seat, and the other two will serve as side parts.Screw the side pieces to the main seat. Now, screw two rows of three wheels each on the inside of the seat and two more wheels on the inside of each side panel. Place them at equal distance from the edges and from each other. Fill the holes of the screws with wooden putty and polish thoroughly with sandpaper. It's time to think about aluminum strips 140 by 4 cm. Screw them onto the upper side of the long horizontal beams of the frame.
We manufacture steps

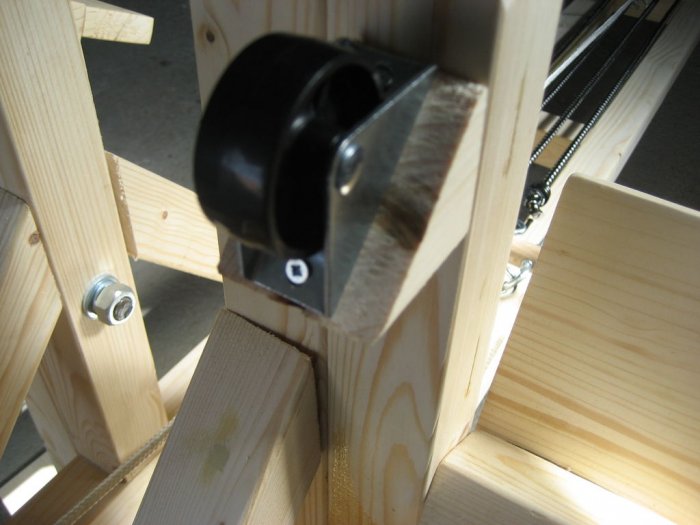

Install the wheels
WaxingCarefully cover all wooden elements with a layerwax.
Getting to the exercises
Adjustment of resistanceTo adjust the resistance of the simulator to your own physical form, detach the hooks of elastic belts from the rings, and if you want to return the original load, return the hooks to the place. The more resistance, the more calories you burn and the faster your back and muscles begin to ache.If you are used to bring yourself to the point of exhaustion, then exercise with 4 straps attached. This will strengthen your cardiovascular system and increase stamina.

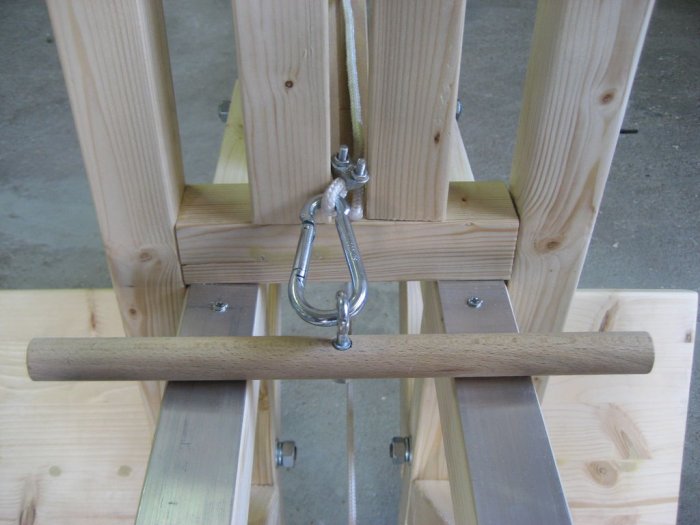

Additional support for your arms
