Making a USB Socket

Agree, it is very convenient when there is a USB socket for charging gadgets next to a regular outlet. There is no need to charge the main outlet. Now almost all portable equipment is charging from USB ports and this is a big plus, since you don’t need to dozens of different connectors for all devices. I will show you how to integrate the charger into a power outlet.
Making a socket with USB

Making a socket with USB output

First you need to find a USB outlet. I'll take the adapter and cut it off.
Making a socket with USB
Disassemble the connector and here it is - the future USB outlet.
Making a socket with USB
I will install the connector next to telephone sockets, because there is a place. You can choose another option. We attach the connector, draw a pencil.
Making a socket with USB
Making a socket with USB
Next, use a mini mini-saw to cut out a hole, making an allowance for the inside of the hole so that the socket does not fall inward. This can be done with a flat-head screwdriver hot on fire.Or in another way.
Making a socket with USB
Making a socket with USB
Insert the USB connector. I hope you did not overdo it and everything came up as it should. It will be great if it comes in tightly and does not hang out.
Making a socket with USB

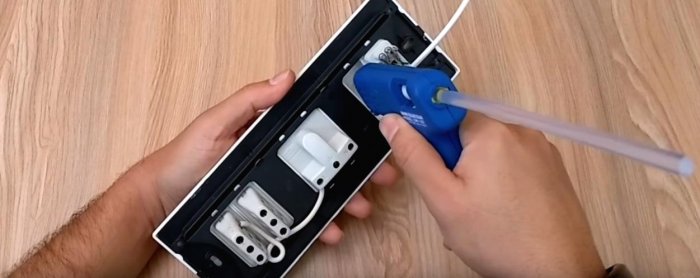

On the reverse side fix with hot glue. Everything should be held securely.
Making a socket with USB
We take an unnecessary charger for 5 V. It is desirable with a load capacity of one ampere. And parse it.
Making a USB socket with a USB
Pulling out the charger board.
Making a socket with USB
Unplug the wires from it. Two network and two five-volts.
Making a socket with USB
Connecting to our outlet with a USB output. Making a socket with USB Solder the wires to the USB. Plus to plus, minus to minus. Be careful - do not confuse.
Making a socket with USB
Solder network,it is desirable to take them thicker.
Making a socket with USB
To the board, on the output side of the pins, pour plenty of hot glue and glue it to the socket itself. Hot glue does not conduct electricity and there can be no closures.
